Kingspan Thermapitch TR10
Insulation
Kingspan

Kingspan Thermapitch TP10/TF70/TW55 1200mm x 2400mm - 120mm

SKU: INS-KKN-10IN1

Out of Stock
£107.99inc. VAT

£89.99 ex. VAT

Retail Price

VAT charged at the applicable rate (20%) at checkout.

Product Description

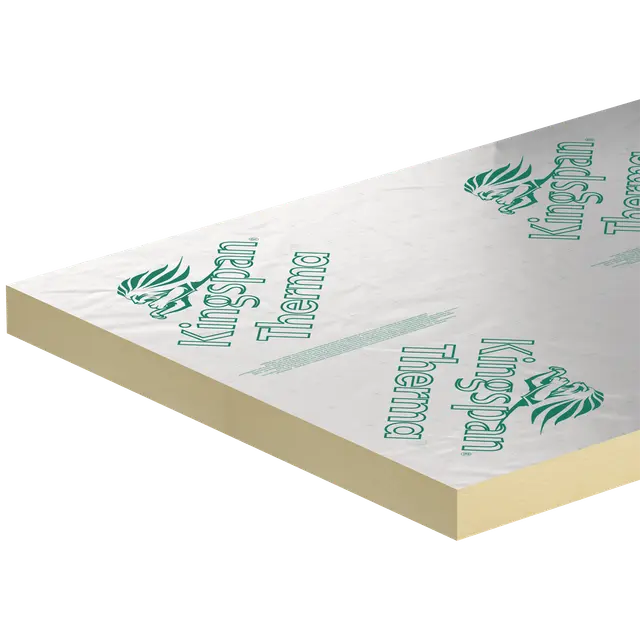

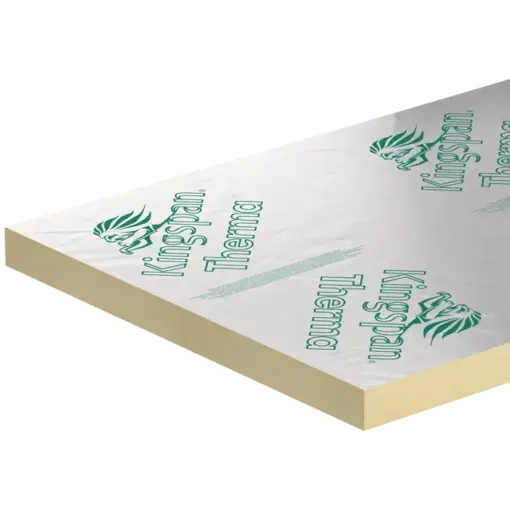

<p><strong>Kingspan Thermapitch TP10/TF70/TW55 1200mm x 2400mm – 120mm</strong> is a high-performance rigid thermoset polyisocyanurate (PIR) insulation board engineered for superior thermal efficiency in pitched roofs, walls, and floors. Marketed under three names — Thermapitch TP10, Thermafloor TF70, and Thermawall TW55 — these boards share identical technical specifications and are simply certified under different designations to suit specific applications. With a certified thermal conductivity of just 0.022 W/mK, this 120mm PIR board is among the most thermally efficient insulation products available to UK trade and self-build customers.</p>

<h3>Key Features and Specifications</h3>

<ul>

<li><strong>Core material:</strong> Fibre-free rigid thermoset polyisocyanurate (PIR)</li>

<li><strong>Facings:</strong> Low-emissivity composite foil bonded to both sides</li>

<li><strong>Dimensions:</strong> 1200mm × 2400mm × 120mm</li>

<li><strong>Coverage per board:</strong> 2.88 m²</li>

<li><strong>Thermal conductivity (λ):</strong> 0.022 W/mK</li>

<li><strong>Compressive strength:</strong> Approximately 140 kPa</li>

<li><strong>Moisture absorption:</strong> As low as 2% — highly resistant to water vapour transmission</li>

<li><strong>Blowing agent:</strong> Zero Ozone Depletion Potential (ODP); low Global Warming Potential (GWP); CFC and HCFC free</li>

<li><strong>Green Guide Rating:</strong> A+</li>

<li><strong>Certifications:</strong> BBA Certificate 14/5133; BS EN 13165:2012+A2:2016; UKCA Declaration of Performance; Robust Details Part E (England &amp; Wales); BES 6001</li>

<li><strong>Fire classification:</strong> Euroclass F to BS EN 13501-1:2018</li>

<li><strong>Pack weight:</strong> Approximately 11.06 kg</li>

</ul>

<h3>Applications</h3>

<ul>

<li><strong>Pitched roof insulation (TP10):</strong> Between, under, or over rafters in tiled or slated warm pitched roofs; suitable for both ventilated and unventilated roof constructions</li>

<li><strong>Loft conversion and warm loft insulation:</strong> Ideal for creating usable attic space and reducing heat loss through the roof</li>

<li><strong>Wall insulation (TW55):</strong> Between studs or as insulating sheathing in timber and steel framing systems</li>

<li><strong>Floor insulation (TF70):</strong> Solid concrete and suspended timber ground floors</li>

<li><strong>New build and retrofit projects:</strong> Lightweight and easy to cut with a fine-toothed saw, making it suitable for both new construction and refurbishment</li>

</ul>

<h3>Why Choose This Product</h3>

<p>The <strong>Kingspan Thermapitch TP10/TF70/TW55 120mm</strong> board delivers one of the highest thermal resistance values per millimetre of any mainstream insulation product, helping buildings meet and exceed Part L of the Building Regulations (England &amp; Wales). Its foil facings resist air infiltration and moisture ingress, protecting the building fabric over the long term. The board will not sag, rot, or provide food value to vermin, ensuring a lifespan that matches the building itself. Backed by BBA certification and an A+ Green Guide Rating, it is a trusted choice for architects, main contractors, roofers, and DIY self-builders alike.</p>

<h3>Delivery in and Around London</h3>

<p>We deliver Kingspan Thermapitch TP10/TF70/TW55 120mm boards to London boroughs including <strong>Croydon, Lewisham, Southwark, Camden, and Hackney</strong>, as well as Greater London areas such as <strong>Enfield, Bexley, Redbridge, and Barnet</strong>. We also supply to the surrounding counties of <strong>Kent, Essex, Surrey, and Hertfordshire</strong>. Boards are available individually or in trade quantities — bulk orders are welcome. Contact us to confirm lead times and delivery options for your area.</p>

Specifications

SKUINS-KKN-10IN1
Barcode0236933007391
BrandKingspan
CategoryInsulation
Uniteach
Weight10.000kg
