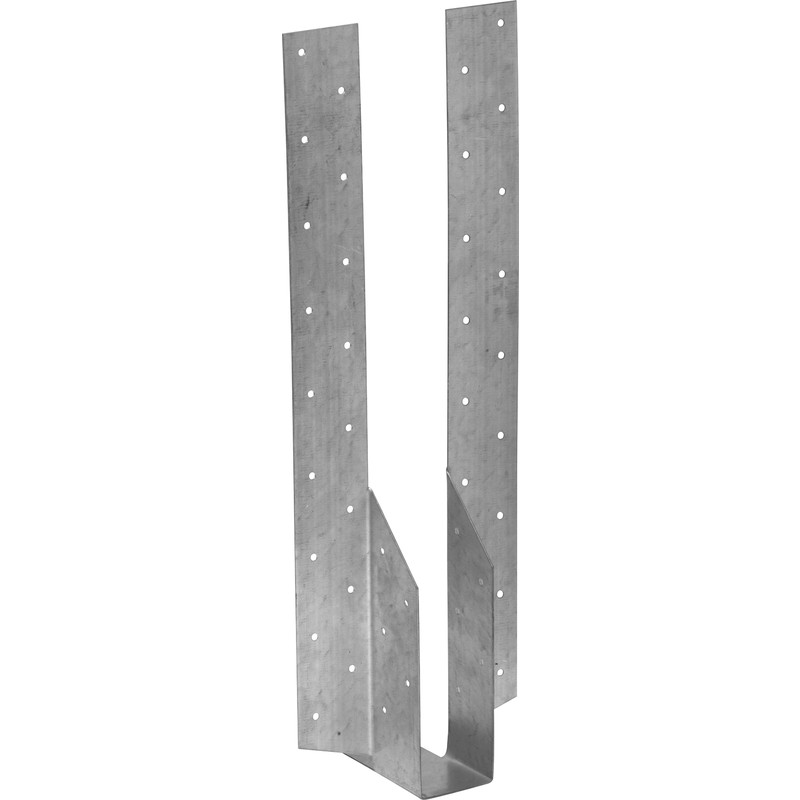

Medium Duty Hanger – Long Leg 100mm

BPC Building Products Medium Duty Hanger – Long Leg 100mm (code B460/100) is a high-performance, pre-galvanised steel timber-to-timber joist hanger engineered for reliable mid-load floor and roof applications. Manufactured by BPC Building Products Limited to exacting tolerances, it is the go-to choice for builders, structural carpenters, and self-builders who need a certified, long-leg hanger for solid joists or I-Beam installations.

Key Features and Specifications

• Product Code: B460/100
• Joist Width (W): 100mm
• Overall Leg Length (L): 452mm
• Bearing Surface (B): 50mm
• Side Height (S): 155mm
• Leg Width: 50mm wide legs for enhanced nail spacing and load distribution
• Material: 1.2mm thick pre-galvanised steel to BS EN 10346:2009 DX51D + G275
• Stainless steel variant: Available to order
• Fixing: 30mm × 3.75mm sherardised square twisted nails in all pre-punched holes
• Alignment: Integral location tab on hanger base for quick, accurate positioning
• Max drop (loft conversions): 75mm below supporting beam
• Certification: ETA 20/0915; verified to EAD 130186-00-0603
• Design standard: EN 1995-1-1:2004/A1 (Eurocode 5)
• Sold: Individually; trade boxes of 50 available

Applications

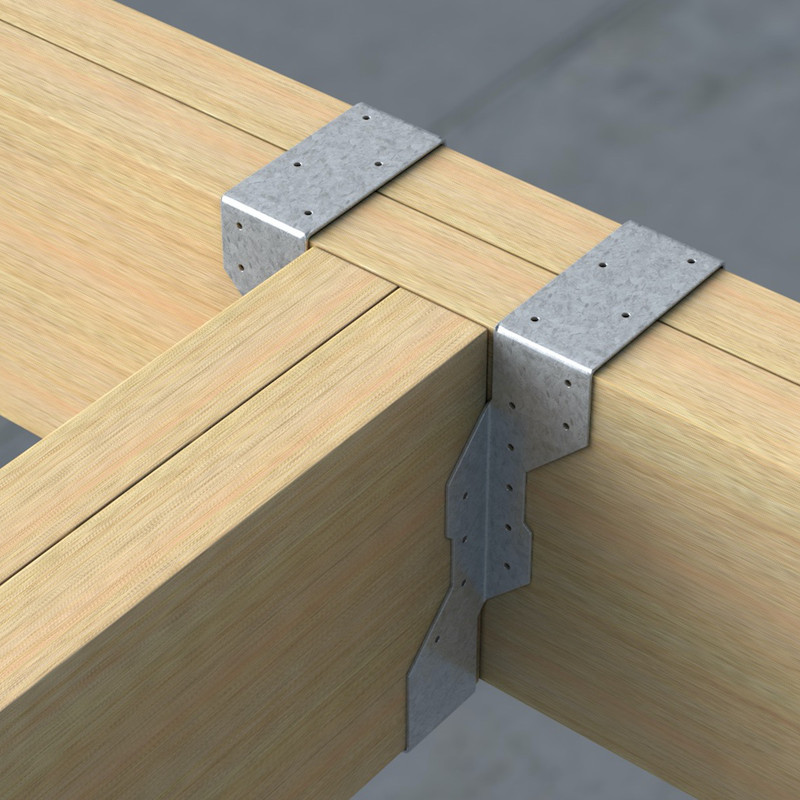

• Timber-to-timber floor joist connections in new-build and renovation projects
• Loft conversion structural work — long leg design accommodates joists dropping below the supporting beam
• I-Beam and engineered timber joist installations (face fixed or wrapped over)
• Trimming around stairwells, ceiling hatches, and structural openings
• General mid-load structural carpentry where a standard-leg hanger is insufficient

Why Choose This Product

The BPC B460/100 carries full ETA certification and is designed in accordance with Eurocode 5, giving structural engineers and building inspectors the documented assurance they need. The 50mm wide legs increase the nail-fixing area compared with narrower alternatives, improving load transfer and resistance to rotation. The built-in location tab speeds up installation and reduces misalignment on site — a genuine time-saver on large floor decks. Pre-galvanised to G275 specification, it offers robust corrosion resistance for internal structural use without the premium cost of stainless steel.
