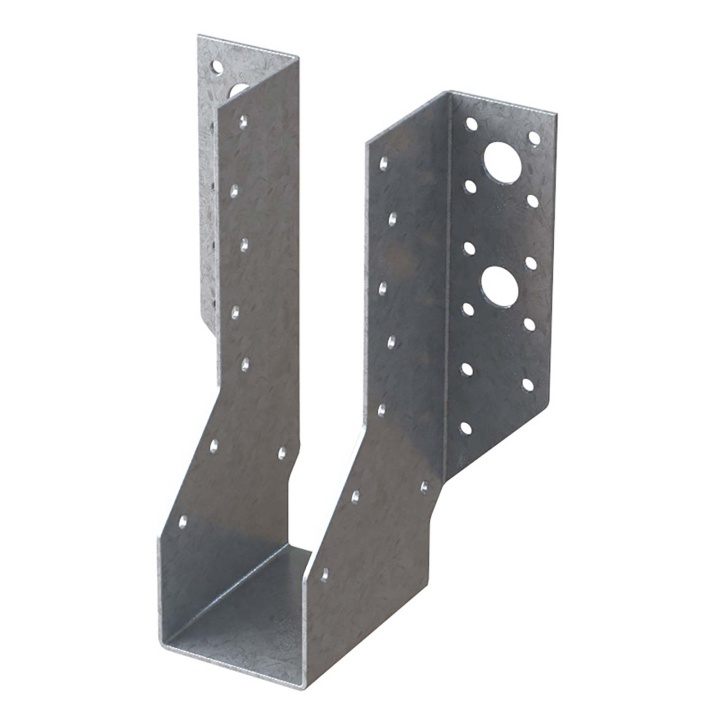

Multi Truss Hanger Type 340 47mm

Multi Truss Hanger Type 340 47mm

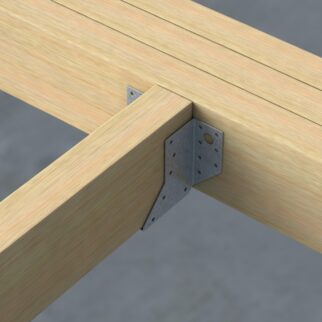

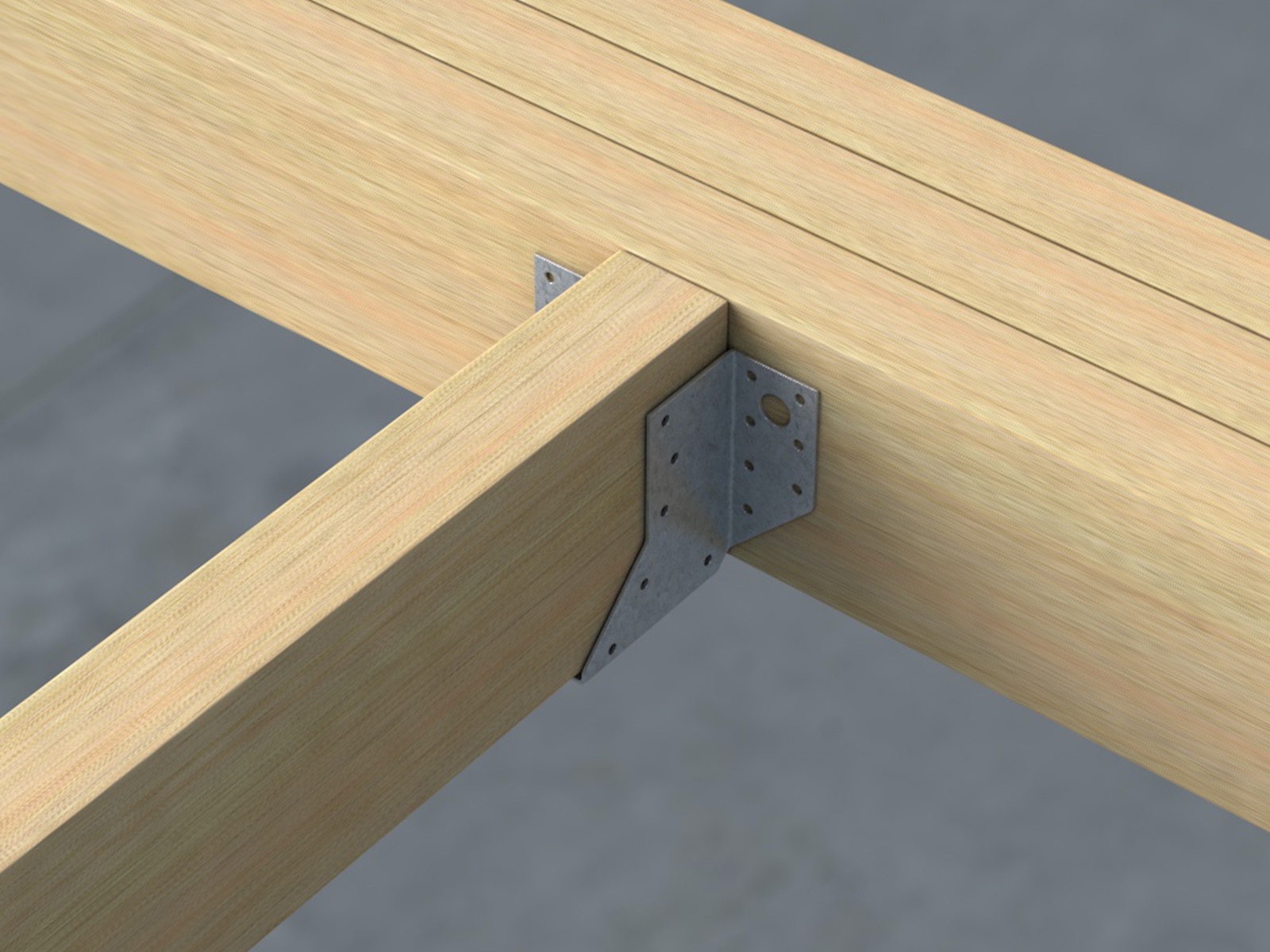

This heavy-duty support hanger is specifically engineered for demanding applications such as multiple truss units, main trimmer joists, and purlin-to-beam connections, where unusually heavy loads are involved. Its robust design ensures secure connections in structural settings that require extra strength and reliability.

Key features:

Material: Constructed from 1.5mm thick galvanised steel to BS EN 10346 + G275 standards for durability and corrosion resistance, with stainless steel options available upon request for environments requiring enhanced protection.

Fixing: Pre-punched holes allow for flexible installation using:

Type A: 30mm x 3.75mm Sheradised Square Twist Nails, provided loose for manual fixing.

Type B: 35mm x 3.75mm Sheradised Square Twist Nails, typically collated for fast installation with a nail gun.

Bolt hole: Designed to suit M12 fixings, providing strong anchoring in heavy-duty applications.

Nail holes: 5mm diameter, ensuring secure and stable installation in high-load scenarios.
