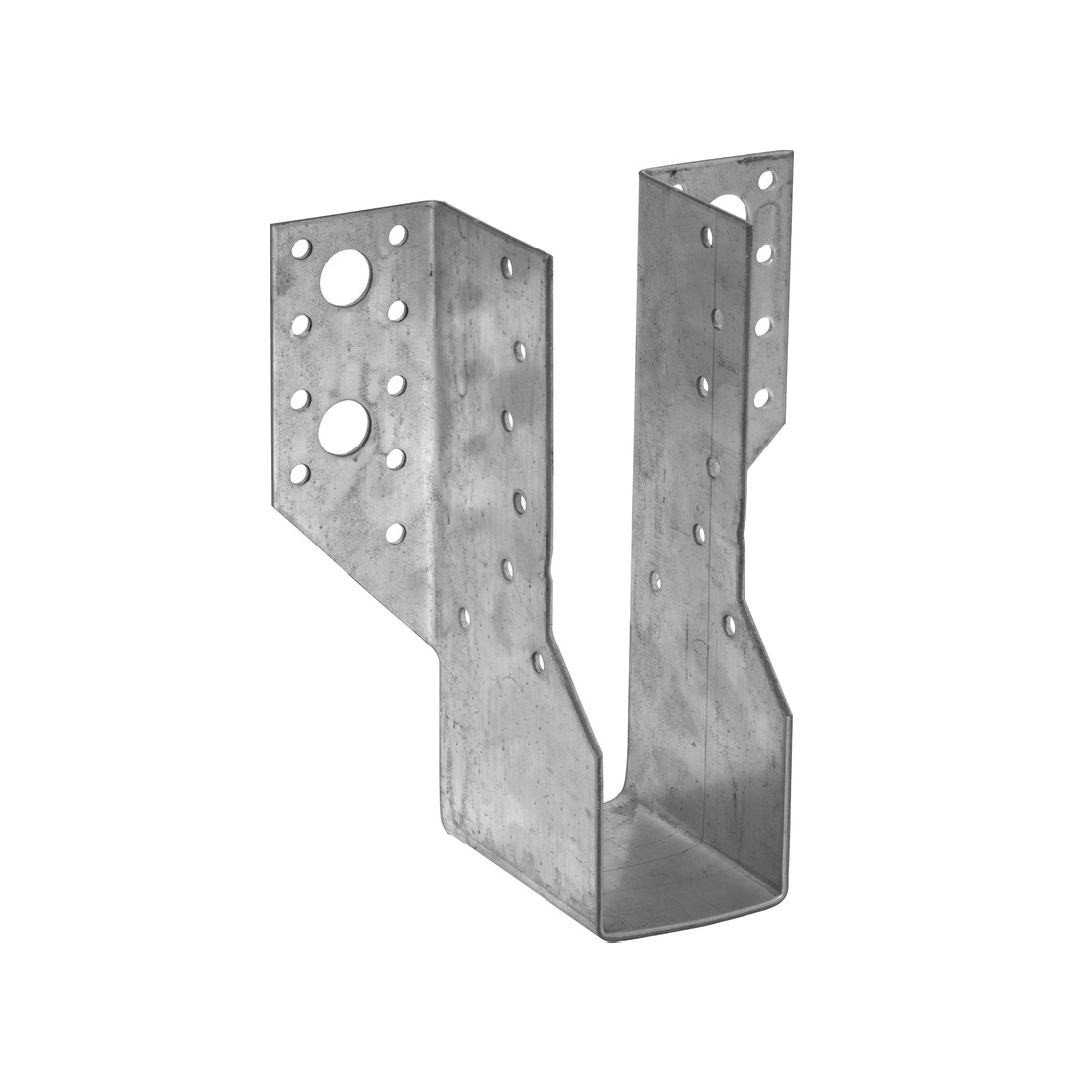

Multi Truss Hanger Type 240 47mm

Multi Truss Hanger Type 240 47mm

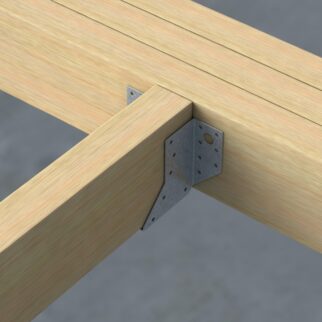

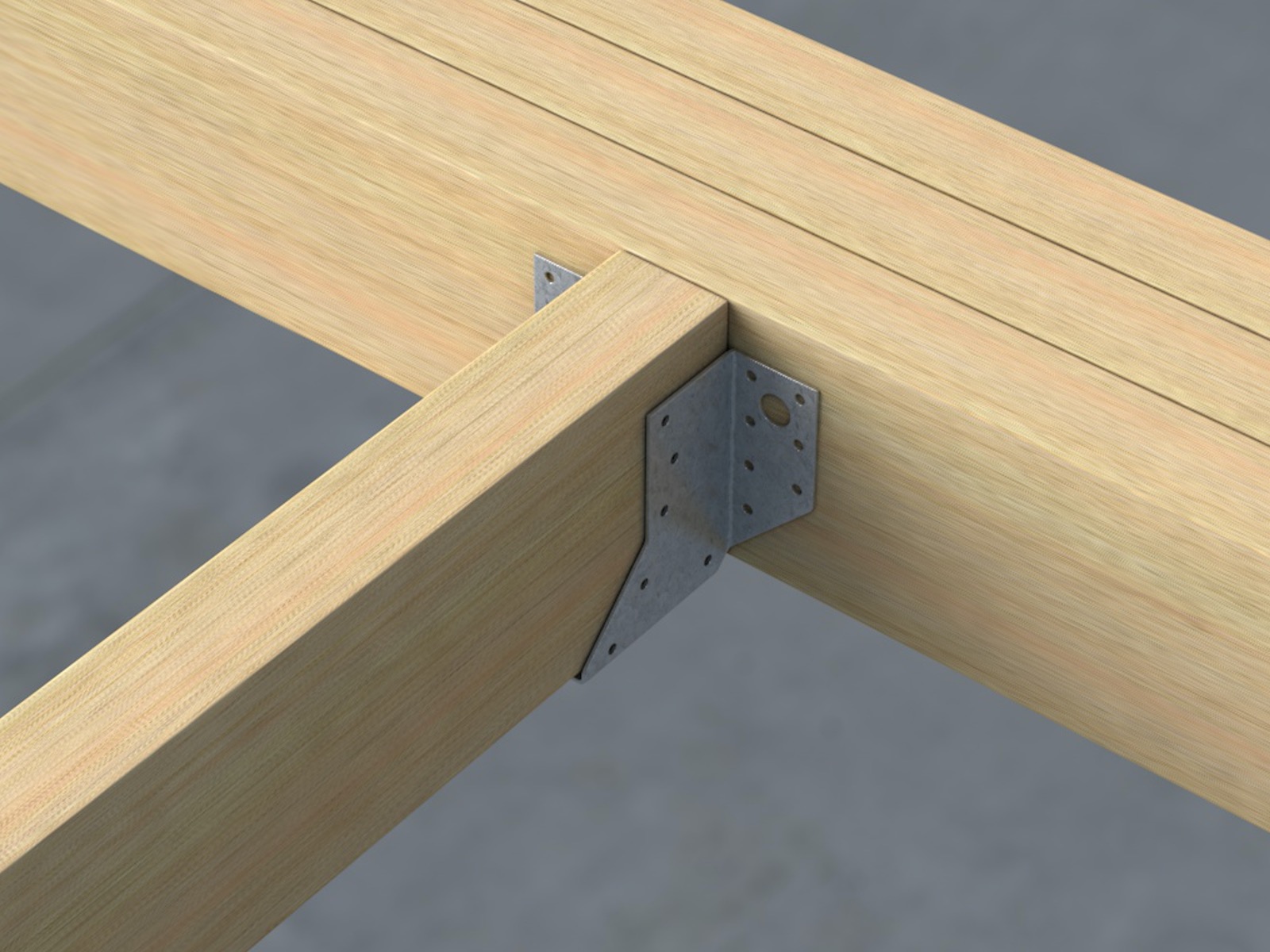

This heavy-duty support bracket is designed to provide robust connections for multiple trusses, purlin to beam connections, and main trimmer joists, making it ideal for high-load applications. It can be used to join timber to timber, masonry, or concrete, providing enhanced strength and stability in demanding structural environments.

Key features:

Material: Manufactured from 1.5mm thick galvanised steel to BS EN 10346 + G275 standards for excellent corrosion resistance and durability. Stainless steel versions are available upon request for added protection in harsher environments.

Fixing options: Includes pre-punched holes for flexible installation using:

Type A: 30mm x 3.75mm Sheradised Square Twist Nails, supplied loose for manual fixing.

Type B: 35mm x 3.75mm Sheradised Square Twist Nails, collated for use with a nail gun.

Bolt fixing: A bolt hole designed for M12 fixings ensures strong connections in high-load applications.

Nail holes: 5mm diameter for secure fastening.
