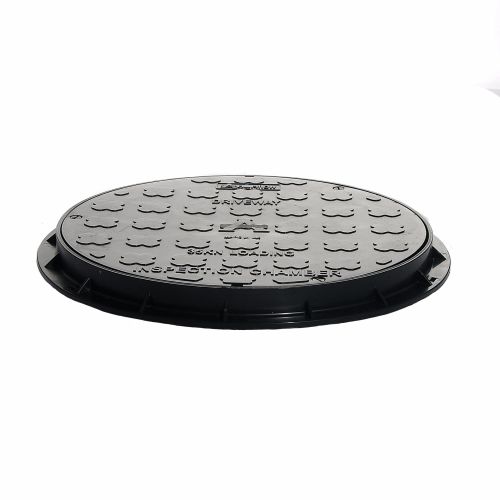

Aquaflow 470mm Plastic Manhole Round Cover & Frame

Aquaflow 470mm Plastic Round Cover & Frame

The Large Inspection Cover and Round Frame is designed for use with Aquaflow’s large inspection chamber (65574), providing a secure and durable solution for sealing the chamber. This cover and frame combination is ideal for drainage systems where access is required for maintenance and inspection.

Key Features:

Compatibility:

Specifically designed to fit the 470mm Aquaflow large inspection chamber (65574) and its riser (59102), ensuring a perfect fit and secure installation.

Installation Flexibility:

The frame can be installed either level with the ground or slightly below if you plan to cover it with paving materials, making it versatile for various landscaping or site requirements.

Secure Fixing:

The cover and frame are designed to be mounted in a concrete surround of at least 50mm for stability. Clear, marked fixing points ensure easy alignment and secure attachment to the chamber wall.

Once the frame is installed, the cover can be screwed to the frame, ensuring it stays secure and preventing accidental opening or tipping.

Load Capacity:

The inspection cover has a 3.5-tonne safe working load (SWL), equivalent to 35kN, providing sufficient strength for most pedestrian areas and light traffic zones.

Compliance:

The cover complies with British Standards and Building Regulations, ensuring it meets safety and performance requirements.

Applications:

Drainage Systems:

Ideal for use in drainage systems that require inspection and maintenance, the cover provides secure and reliable access.

Paving and Landscaping:

Can be fitted beneath paving materials, making it suitable for both landscaped areas and pedestrian zones.
