Hand Nail Plate 100x200mm

Hand Nail Plate 100x200mm

The Nail Plate System is designed for manual use in the construction of timber structures on-site. This system strengthens joints in non-structural applications and offers a reliable, cost-effective method for connecting timber components, such as site-built trusses.

Key Features:

Applications:

Ideal for non-structural applications, particularly for strengthening joints in timber construction projects.

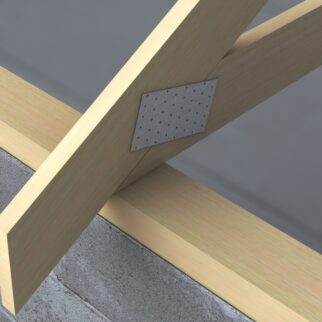

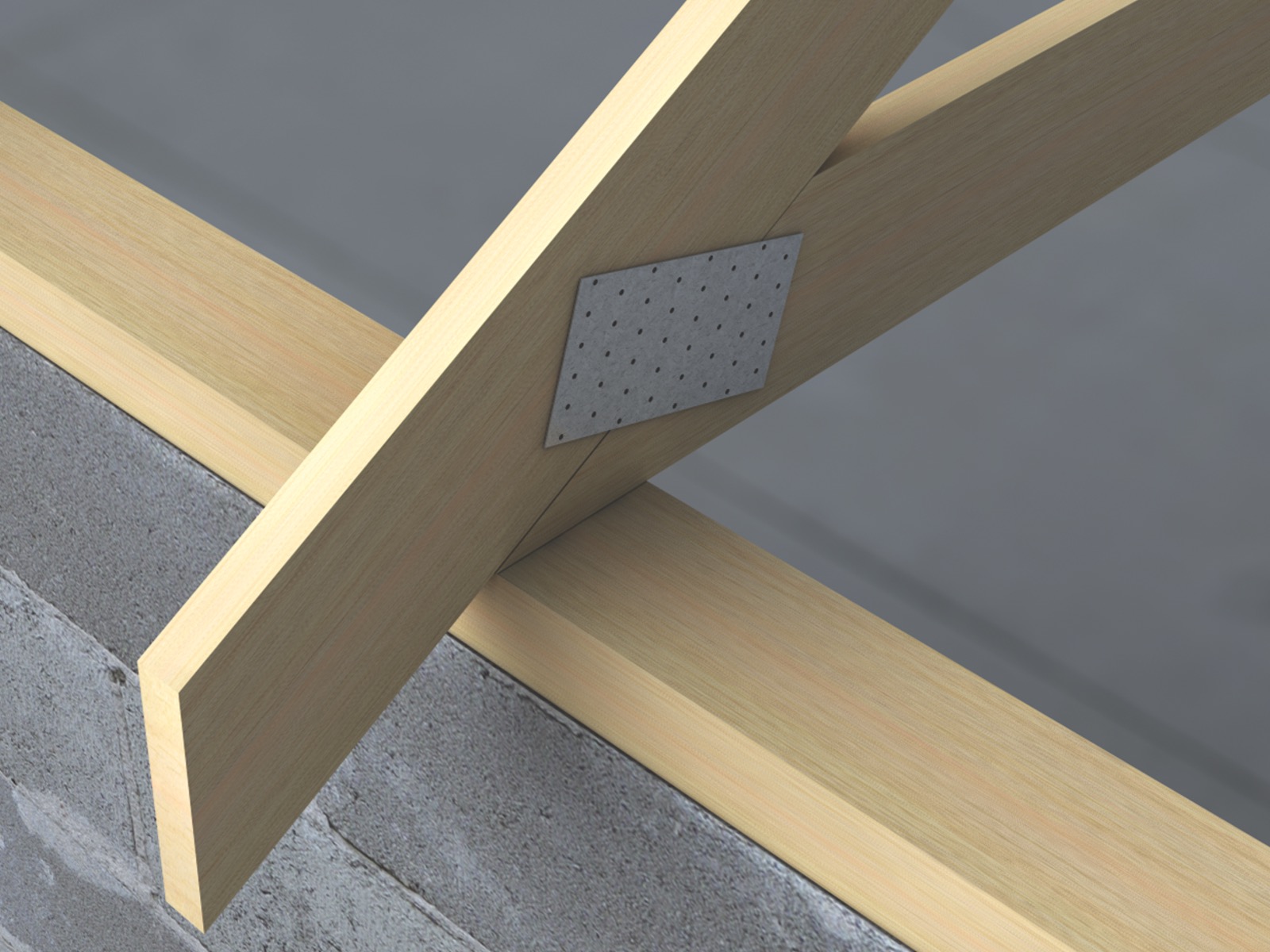

Commonly used for site-built trusses and other timber structures, offering additional support where needed.

Design:

Automated production ensures uniform hole positions, making it easy to align and fasten the plates.

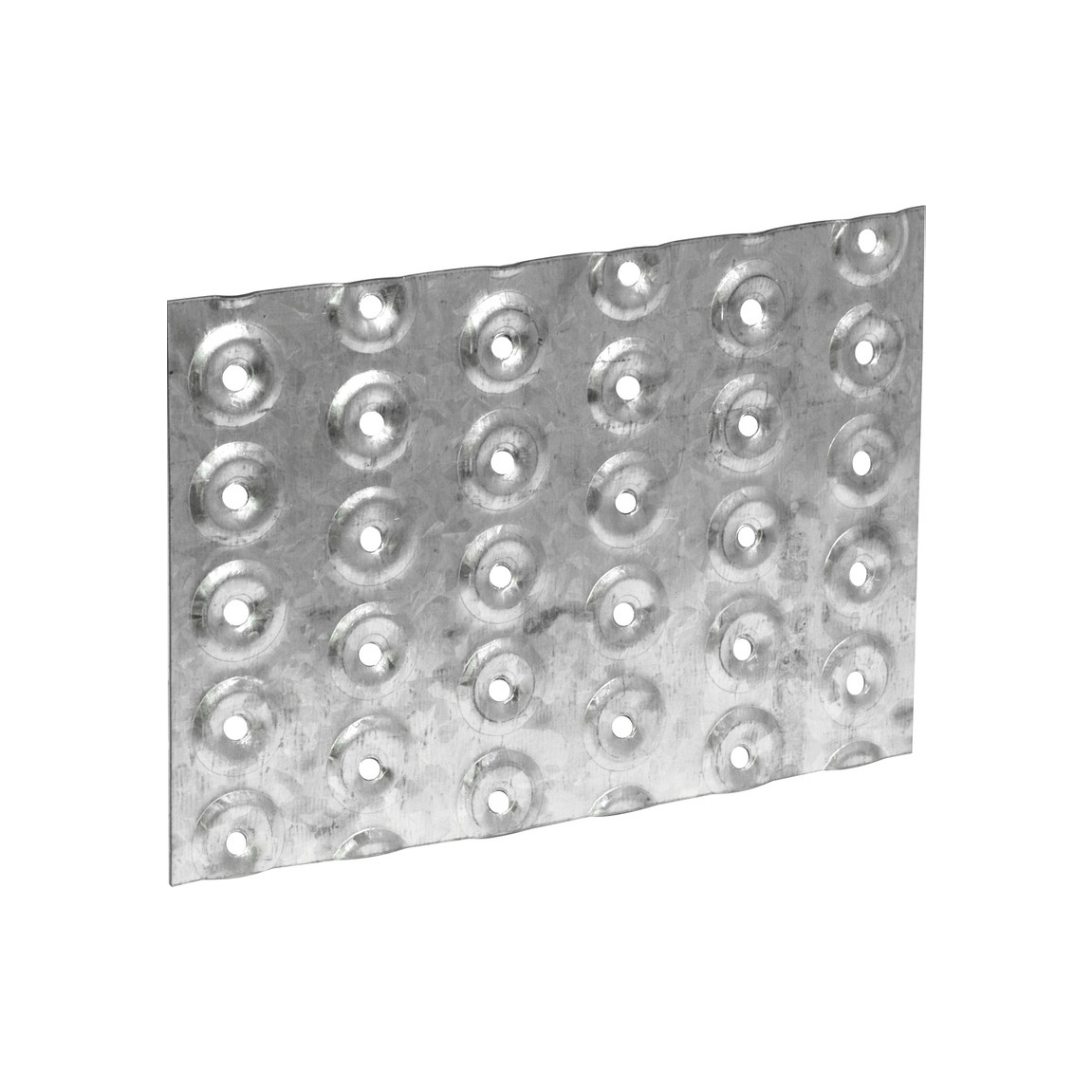

The pressed dimple design adds strength and rigidity, assisting with nail placement and ensuring a more secure connection.

Material:

Manufactured from 0.9mm thick galvanised steel to BS EN 10346 + G275, offering durability and corrosion resistance.

This ensures that the plates can withstand the elements, making them suitable for both indoor and outdoor use.

Standards:

The NP range meets the requirements of BS EN 14545, ensuring compliance with European standards for timber construction connectors.

Fixing:

Plates are fixed by nailing through the pre-punched holes using BPC Sheradised Square Twisted Nails (30mm x 3.75mm).

For effective reinforcement, the plates must be installed on both sides of the timber, providing a robust and secure joint.

Benefits:

Cost-Effective: Provides a simple and economical method for reinforcing timber joints on-site.

Ease of Use: The pre-punched holes and dimple design make nailing straightforward, ensuring quick and accurate installation.

Durability: Manufactured from galvanised steel, ensuring long-lasting performance in a variety of environments.
